Saracen Off Road Hitch Lock

Saracen Off Road Hitch Lock (SHL400)


SKU: 450-06087 Category:


Saracen Off Road Hitch Lock (SHL400)

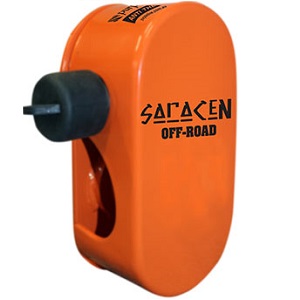

Saracen OFF ROAD is a high-security hitch lock developed in Australia specifically for the popular Vehicle Components HITCH MASTER DO35 articulated hitch.

It has all the proven Saracen features including high strength steel construction, anti-pick seven-pin cylinder lock and anti-copy tubular key.

  • Made from high strength steel
  • Seven Pin cylinder lock resistant to cutting, picking, drilling and gas freezing
  • Anti-copy tubular key for added security


  • Remove weather cap and insert the key into the lock.
  • Push key into lock and turn it 90 degrees clockwise to unlock.
  • Remove the locking pin from the housing.
  • Remove hitch enclosure
  • Remove main body.


  • Unhitch your van or trailer from the tow vehicle.
  • Tilt the DO35 hitch forward 90° so the pin receiving hole is horizontal.
  • Insert the main body of the Saracen Off-Road Hitch Lock behind the hitch so the locating mount fits into the DO35 pin receiver (so the locking pin will be at the top).
  • Fit hitch enclosure to front of hitch lock assembly.
  • Insert locking pin into hitch lock and lock it with the key.
  • Attach weather cap to locking pin

Additional information

Weight 5 kg
