Sway-Master Electronic Sway Control
Sway Master Electronic Sway Control. This sway control system is designed to provide simultaneous braking when sway is detected to all trailer brakes on single to four axle trailers. While the solid state gyroscope and GPS are always active and monitoring sway, the unit initiates a speed sensitive quick reaction braking boost when sway is detected to recover stability or to counter instability.
Features and Benefits
- Easy installation
- Self calibrating, Plug and play design, with 12 pin connectors
- Comes with 12 pin connectors for easy positioning of unit
- Led status light indication
- Parallel circuitry. Does not interfere with normal braking or brake control systems
- Two Year limited warranty

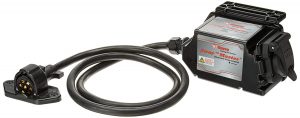

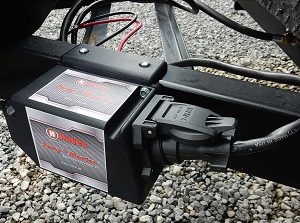

The Sway Master is designed for simple plug and play installation and operation. The unit itself attaches via self-tapping screws to the A-frame of the trailer. There is a female connector for the 7-way from the trailer into the unit with a 5-foot pigtail with male connector from the unit into the tow vehicle. Once connected, a blue light on the unit will signify its’ readiness. There is no hard wiring or special unit positioning required. While not all trailers need weight distributing.
.
